CLS-C32024LXX-08A | 12W DC 24V LED Strip Light

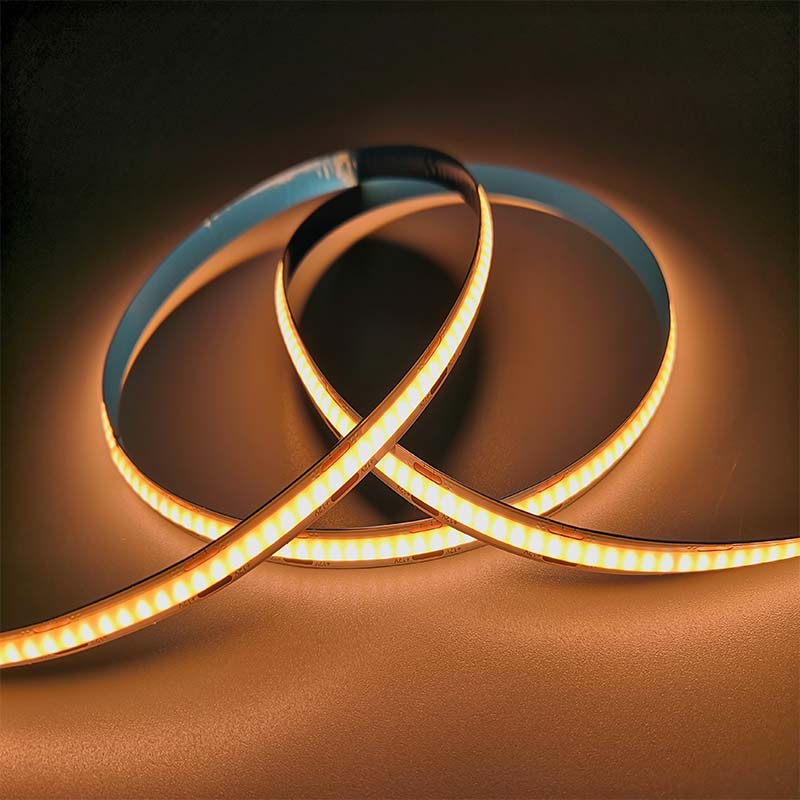

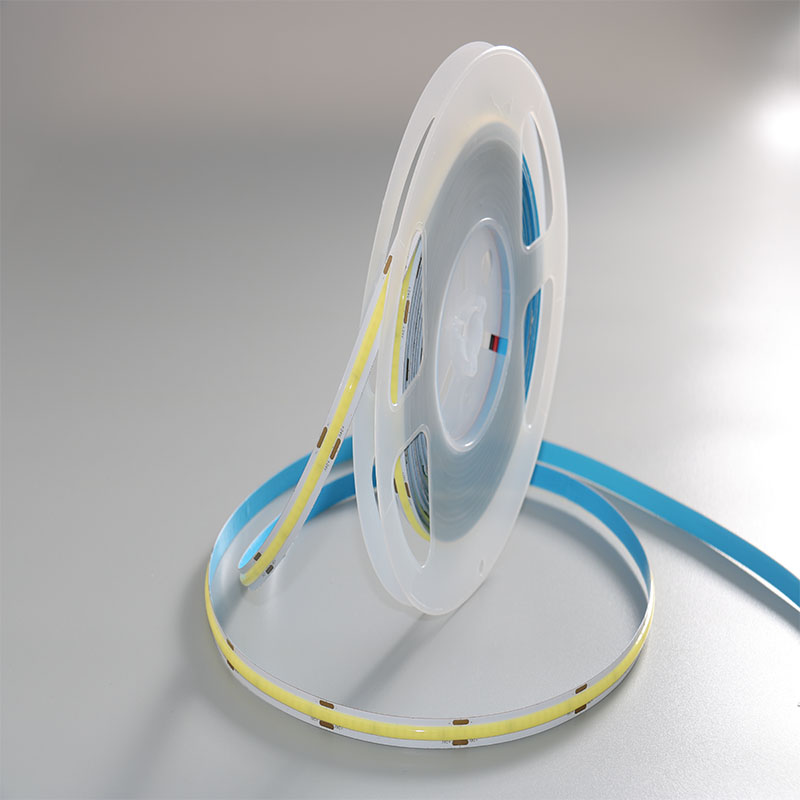

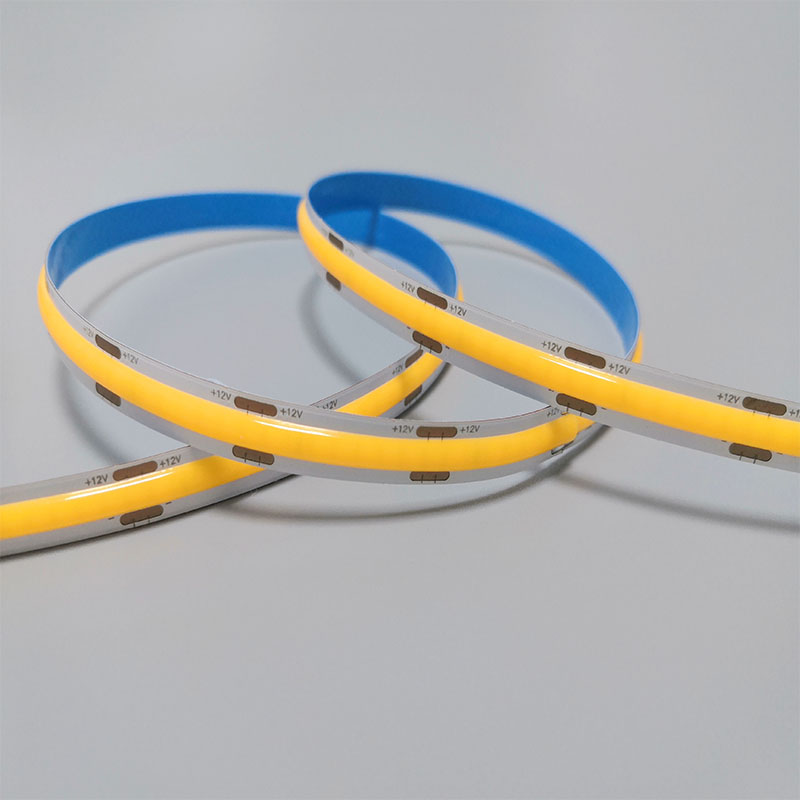

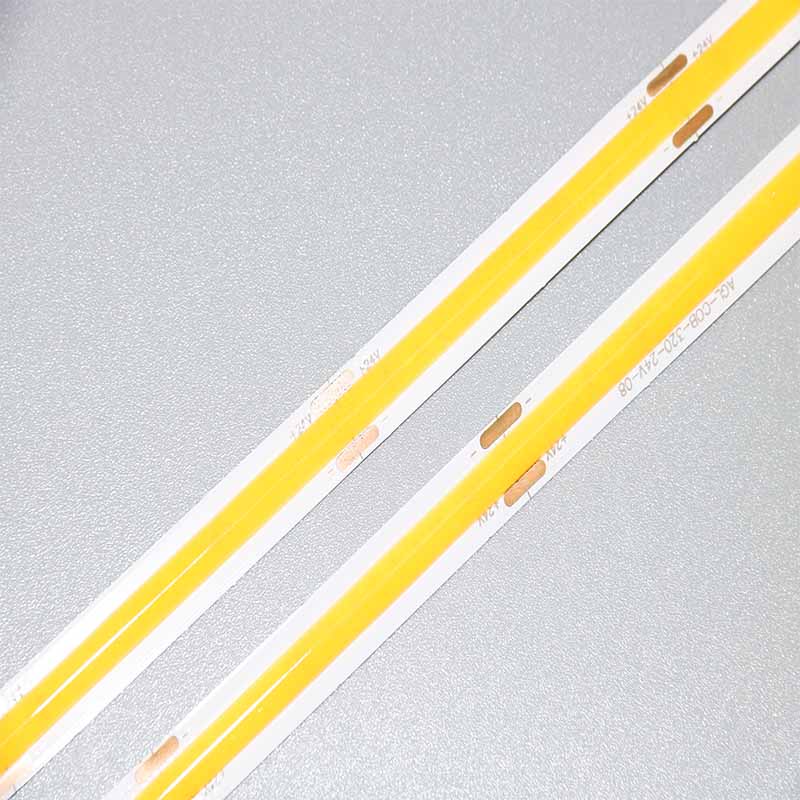

Led Cob lights L5000*W8mm light soft & dot-free lighting & bending freely, used for Letter signage backlight Building Decoration,Auditorium walkway lighting,Advertising signs, light box lighting,Landscape decoration.


1.Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.

2.We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters / roll.

3.Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.

4.Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip.

5.In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection

6.The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.

7.It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection

  • Product Description
  • Product Model

LED Strip Light Power

Rated Power 10w

Max. Power 12w

Led strip size L5000 * W8 mm ; Weight  100g
Min. cut / MM  50mm
Input VoltageDC24V
CCT2700K-6500K/ RGB
Luminous Efficiency 80-100lm/w

Connection Possiblility

L150mm*20#Wire Connection

Beam Angle 180 °
Energy Label A
Waterproof GradeIP20
CertificatesCE, ROHS, ETL, DLC, SAA, UL, EMC
ApplicationLiving room, Bedroom, Staircase, Aalkway, Cabinet, Wardrobe, Jewelry counter, Makeup counter
Working Temperature-40ºC to 60ºC
Warranty3 Years
Average Illumination Time50,000 hours

Model NO.CLS-C32024LXX-08A
QTY/CTN500M  ( 100rolls )
CTN SIZE450*440*310mm
